Description

  • Made in the USA with Type 316 (low Carbon) Stainless Steel
  • 316 stainless provides the highest salt water corrosion resistance of the 316 types. Appropriate for marine and seaside applications and in other severe conditions where corrosion is a concern
  • Must be installed with specified stainless steel fasteners

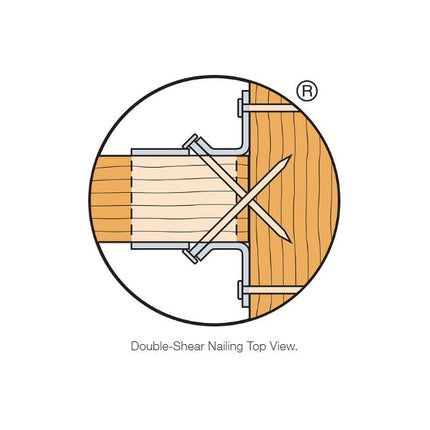

  • Patented double shear nailing distributes the load through 2 points on each joist for greater strength. The nails slant through the joist into the header, not only fastening the hanger but also helping to carry some of the load.
  • The hanger design allows for the use of fewer fasteners for faster installation
  • Install with specified stainless steel fasteners
  • Full length 3” or 3-1/2” hand drive nails (or 2-1/2” collated connector nails) are always required for the patented double sheer (angled) nailing. Under some conditions alternative sized fasteners may be substituted but at a potentially significant load reduction. See nail substitution chart.
  • LUS series hangers are not intended for welded applications
  • Caution! - Do not bend or remove tabs or alter hanger in any way

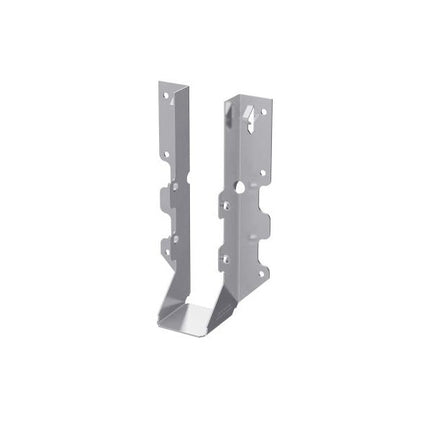

Simpson LUS Single 2 x 8 Face Mount Joist Hanger - Stainless Steel

Product form

SKU: LUS28SS

$15.37

Free pickup in our shop(s)
Volume pricing

Buy 25 for $14.66 each

    You may be interested in these products

    • 34° Connector Joist Hanger Nails, Paper Tape, Stainless Steel
    • Connector Nail for Stainless Steel Connectors and Joist Hangers, 1-1/2"

      Joist Hanger / Framing Connector Nails, 316SS

      $29.60

    • Strong Drive SD Connector Screw, 1-1/2", 100 pc Box, 316SS; Strong-Drive SD Connector Screw, 1-1/2", 316 Stainless Steel; SD Connector Screw, 1-1/2" Screw, front view with head stamp visible; Installation photo using the 1-1/2" SD Connector screw with the H2.5ASS Hurricane Tie. Install is on a beachfront, coastal property. Stainless Steel will offer corrosion protection in this environment.

      SD Connector Screw 316SS

      $54.80

    4.8 Rating 12,000+ Reviews on Shopper Approved

    High Quality Personalized Service

    Fast Shipping FedEx and USPS

    Free Shipping on orders over $199*

    Wide Variety of Hard-to-find Stainless Steel Fasteners

    Description

    • Made in the USA with Type 316 (low Carbon) Stainless Steel
    • 316 stainless provides the highest salt water corrosion resistance of the 316 types. Appropriate for marine and seaside applications and in other severe conditions where corrosion is a concern
    • Must be installed with specified stainless steel fasteners
    • Patented double shear nailing distributes the load through 2 points on each joist for greater strength. The nails slant through the joist into the header, not only fastening the hanger but also helping to carry some of the load.
    • The hanger design allows for the use of fewer fasteners for faster installation
    • Install with specified stainless steel fasteners
    • Full length 3” or 3-1/2” hand drive nails (or 2-1/2” collated connector nails) are always required for the patented double sheer (angled) nailing. Under some conditions alternative sized fasteners may be substituted but at a potentially significant load reduction. See nail substitution chart.
    • LUS series hangers are not intended for welded applications
    • Caution! - Do not bend or remove tabs or alter hanger in any way

    Specifications
    Base
    1-3/4"
    Gauge
    18
    Hanger inside width
    1-9/16"
    Height
    6-5/8"
    Joist size
    Single 2 x 8
    Manufacturer
    Simpson Strong Tie®
    Material
    Type 316 Stainless Steel
    Mfg sku
    LUS28SS
    Sold as
    per piece
    Use for
    Salt water exposure and treated lumber

    Specified Fasteners

    Hand Drive Nails

    Double 2X
    (10) 3" x 0.148" Nails (SSA10D)
    Single 2X
    (6) 1-1/2" x 0.148" nails* for Header (SSNA10) + (4) 3" x 0.148 for Joist (SSA10D)
    **NOTE
    Using 1-1/2" hand nails for header connection significantly reduces hanger load capacity. See Load Adjustment Chart

    Collated (Strip) Nails

    Double 2X: Header (Flange & Joist):
    (10) 2-1/2" x 0.148" connector nails
    Single 2X: Header (Flange):
    (6) 1-1/2" x 0.148" connector nails* for header + (4) 2-1/2" x 0.148" connector nails for joist
    Note:
    Minimum fastener length for LUS joist hanger angled fastening (double shear) is 2-1/2".

    #9 SD Stainless Connector Screws

    Double 2X: Header (Flange & Joist):
    (10) 2-1/2" #9 SD screws
    Single 2X: Header (Flange):
    (4) 1-1/2" SD Screws for Header + (4) 2-1/2" #9 SD screws for Joist, Nails and SD Screws may NOT be Combined in a connection. See Load Adustment Chart for complete fastener information.
