Description

  • Made in the USA with Type 316 (low Carbon) Stainless Steel
  • 316 stainless provides the highest salt water corrosion resistance of the 316 types. Appropriate for marine and seaside applications and in other severe conditions where corrosion is a concern
  • Must be installed with specified stainless steel fasteners

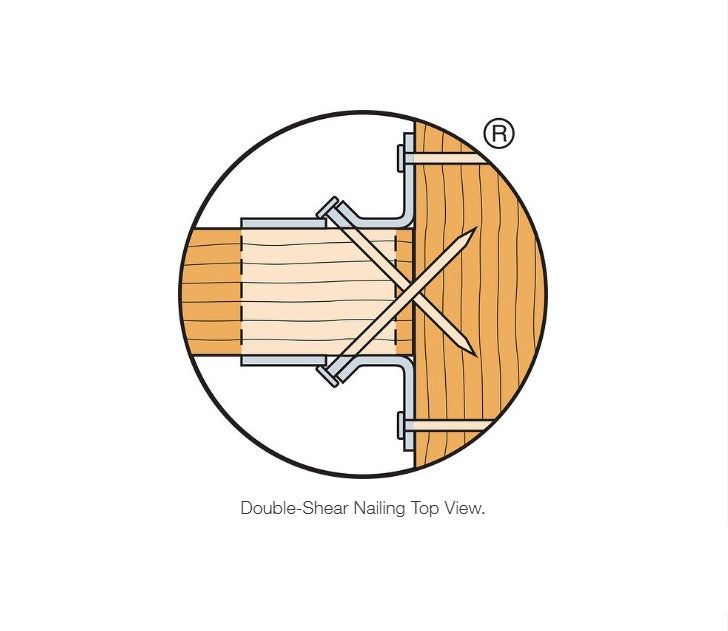

  • Patented double shear nailing distributes the load through 2 points on each joist for greater strength. The nails slant through the joist into the header, not only fastening the hanger but also helping to carry some of the load.
  • The hanger design allows for the use of fewer fasteners for faster installation
  • Install with specified stainless steel fasteners
  • Full length 3” or 3-1/2” hand drive nails (or 2-1/2” collated connector nails) are always required for the patented double sheer (angled) nailing. Under some conditions alternative sized fasteners may be substituted but at a potentially significant load reduction. See nail substitution chart.
  • LUS series hangers are not intended for welded applications
  • Caution! - Do not bend or remove tabs or alter hanger in any way

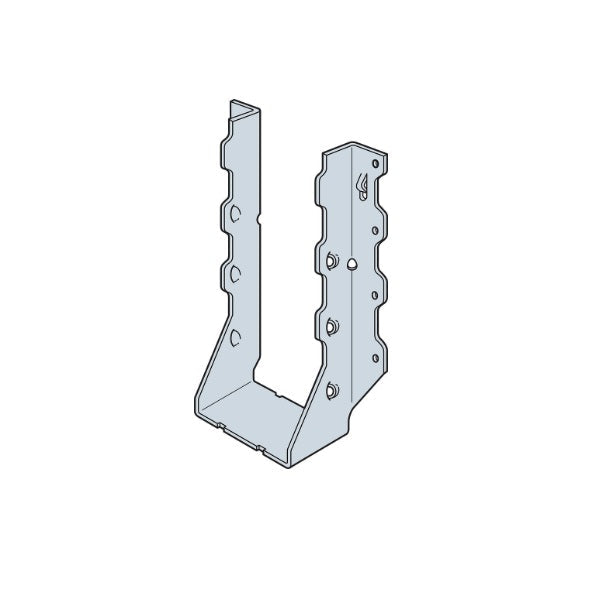

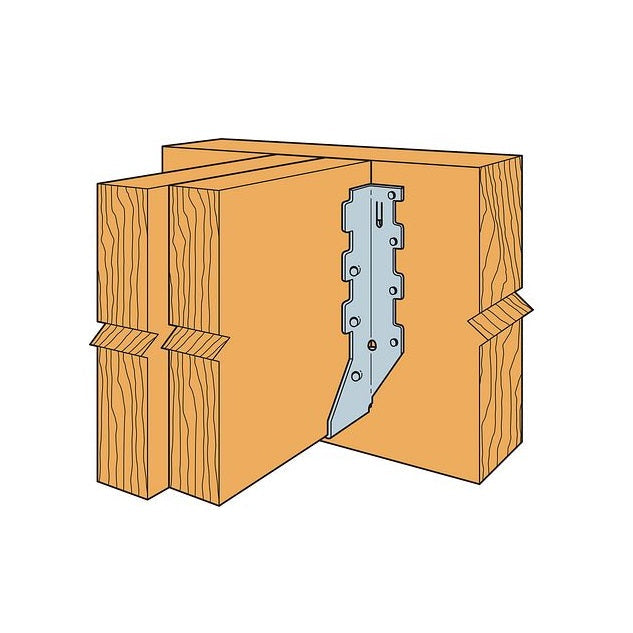

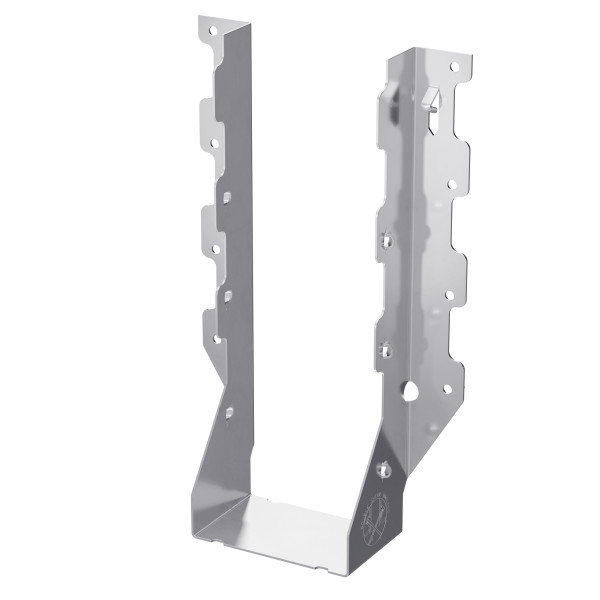

Simpson LUS Double 2 x 10 Face Mount Joist Hanger - Stainless Steel

    Product form

    SKU: LUS210-2SS

    $24.30

    Free pickup in our shop(s)
    Volume pricing

    Buy 10 for $23.35 each

      You may be interested in these products

      Description

      • Made in the USA with Type 316 (low Carbon) Stainless Steel
      • 316 stainless provides the highest salt water corrosion resistance of the 316 types. Appropriate for marine and seaside applications and in other severe conditions where corrosion is a concern
      • Must be installed with specified stainless steel fasteners
      • Patented double shear nailing distributes the load through 2 points on each joist for greater strength. The nails slant through the joist into the header, not only fastening the hanger but also helping to carry some of the load.
      • The hanger design allows for the use of fewer fasteners for faster installation
      • Install with specified stainless steel fasteners
      • Full length 3” or 3-1/2” hand drive nails (or 2-1/2” collated connector nails) are always required for the patented double sheer (angled) nailing. Under some conditions alternative sized fasteners may be substituted but at a potentially significant load reduction. See nail substitution chart.
      • LUS series hangers are not intended for welded applications
      • Caution! - Do not bend or remove tabs or alter hanger in any way

      Specifications
      Base
      2"
      Gauge
      18
      Hanger inside width
      3-1/8"
      Height
      9"
      Joist size
      Double 2 x 10, Double 2 x 12
      Manufacturer
      Simpson Strong Tie®
      Material
      Type 316 Stainless Steel
      Sold as
      per piece
      Use for
      Salt water exposure and treated lumber

      Specified Fasteners

      Hand Drive Nails

      Double 2X
      (14) 3-1/2" x 0.162" Nails
      Single 2X
      (8) 1-1/2" x 0.148" nails* for Header + (6) 3-1/2" x 0.162" for Joist
      **NOTE
      Using 1-1/2" hand nails for header connection significantly reduces hanger load capacity. See Load Adjustment Chart

      Collated (Strip) Nails

      Double 2X: Header (Flange & Joist):
      (14) 2-1/2" x 0.148" connector nails
      Single 2X: Header (Flange):
      (8) 1-1/2" x 0.148" connector nails* for header + (6) 2-1/2" x 0.148" connector nails for joist
      Note:
      Minimum fastener length for LUS joist hanger angled fastening (double shear) is 2-1/2".

      #9 SD Stainless Connector Screws

      Double 2X: Header (Flange & Joist):
      (14) #9 x 2-1/2" SD screws
      Single 2X: Header (Flange):
      Nails and SD Screws may NOT be Combined in a connection. See Load Adustment Chart for complete fastener information.
