Specifications
Box contents

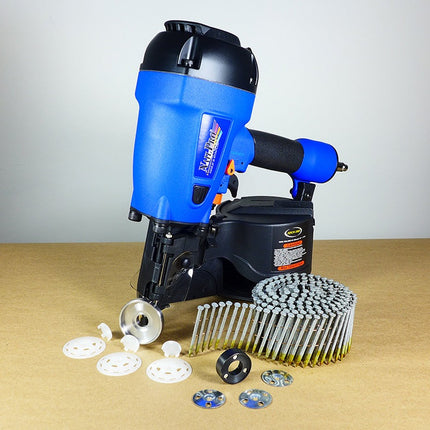

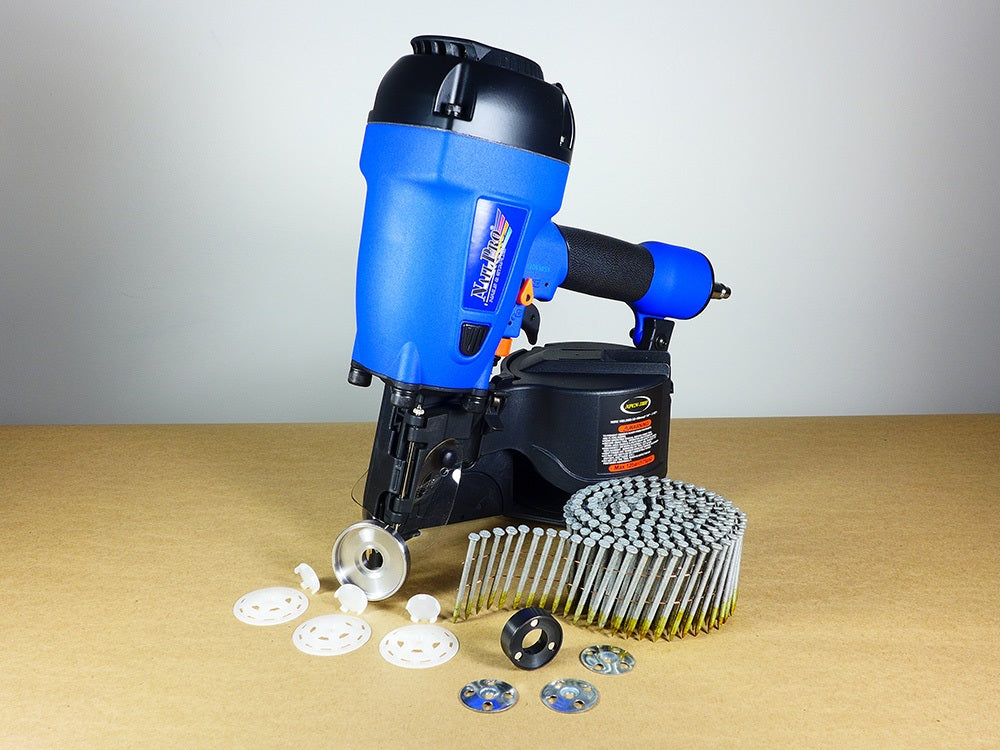

NPCN-7312 Tool+Power Boost Attachment*, operating manual, safety glasses, lubricant, *NSK 15701 power boost extension
Box qty
1.0
Compatible fasteners
Wire Coil Fasteners, Hardened ballistic pins, "Reversible" nails, Standard framing and decking nails
Depth adjustment
yes, Adjustable Dial A Depth to easily adjust for flush or slight set
Icc-es-esr reports
ESR-3009; ESR-2961; ESR-4194; ESR-2962
Load capacity
200 pins
Magnetic washer attachments
None
Manufacturer
NailPro
Mfg sku
NPCN-7312L
Nail collation
15° wire coil
Nail length range
1-1/4"-3-1/2"
Operating pressure
80-175 psi
Shank diameter range
.100"-.145"
Sold as
Each
Tool accessories
NPNSK-15701, A7312MW100, A7312MW114, A7312PW114, A7312PW178
Tool net weight
8.5lbs
Tool type
15° Wire Coil Ballistic Pin Tool and Standard Nail Nailer
Use for
Attaching EIFS continuous panel insulation to concrete, block, steel, and wood with any of our poly or metal washers Attaching lath to rigid insulation panels to concrete, block, or steel Attaching Plywood/OSB® to steel framing, concrete,and block Attaching any cement fiberboard siding or panels to steel framing, concrete, and block Attaching ZipBoard® system R sheathing Attaching DensGlass® to heavier gauge steel, concrete, or block Attaching 2 x 4 and 2 x 6 plates to concrete exterior walls
- ESR-3009_JAACO_-_Concrete_ballistic_pin_fasteners.pdf
- ESR-2961_JAACO_-_OSB_to_cold_formed_steel_f2804005-e823-4af0-99ed-3803180a5b53.pdf
- ESR-4194_JAACO_-_Shear_wall_assemblies_33702196-accc-4fba-8321-e4a36afee994.pdf
- ESR-2962_JAACO_-_Gypsum_to_cold_formed_steel_82a048b7-2458-4f7b-b351-ece96e387716.pdf
